CFL535R Intelligent Microcomputer Control Refrigerated Centrifuge with AC Brushless Motor and Stainless Steel Chamber

Name: CFL535R Intelligent Microcomputer Control Refrigerated Centrifuge with AC Brushless Motor and Stainless Steel Chamber
Brand: Changsha CenLee Technology Co., Ltd,
SKU: CFL535R
Price: 50,000,001.00 USD
Availability: InStock

Markenbezeichnung:	Cenlee
Modellnummer:	CFL535R
MOQ:	1

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

Hunan, China

Maximale Geschwindigkeit:

5350r/Min

Maximale Kapazität:

3000 ml

Max. RCF:

5030×g

Zeitbereich:

0-999min

Stromversorgung:

Wechselstrom 220V 50Hz 15A

Maschinengeräusch:

≤55dB (A)

Abmessungen:

620×740×810mm

Geschwindigkeitsgenauigkeit:

± 20 r/min

Nettogewicht:

150kg

Kammerdurchmesser:

Φ450

Temperaturbereich:

-20 ℃ ~+40 ℃

Temperaturgenauigkeit:

±1℃

Leistung:

1700W

Motortyp:

Bürstenlose AC-Frequenzumwandlung

Kammermaterial:

Edelstahl 304

Hervorheben:

Intelligent Microcomputer Control Refrigerated Centrifuge

AC Brushless Motor Laboratory Centrifuge

Stainless Steel Chamber Blood Bank Centrifuge

Produkt-Beschreibung

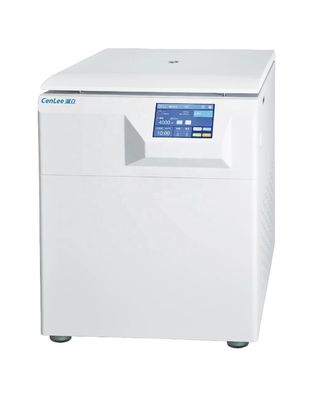

CFL535R Large Capacity 3000ml (4x750ml) Floor Standing Refrigerated Laboratory Centrifuge

This refrigerated centrifuge is designed for clinical medicine, biochemistry, immunology, genetic engineering, and other scientific fields. It serves as an essential laboratory instrument for rapid centrifugation of small volume samples in research institutions and hospitals.

CFL535R Low Speed Large Capacity Refrigerated Centrifuge Features

Intelligent microcomputer control with AC brushless frequency conversion motor drive
Instant centrifugation and continuous centrifugation modes
9 speed-up gears and 10 speed-reduction gears with three sets of damping shock absorption using high-quality NR rubber

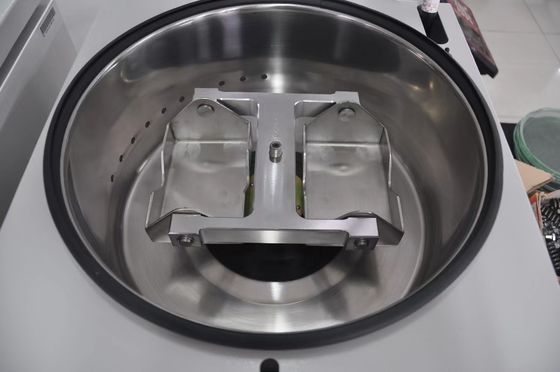

Premium 304 stainless steel centrifugal chamber
Unique rubber isolation ring design prevents condensation water from entering the motor
Fluorine-free compressor unit (imported) with quick cooling capability and environmental refrigerants
Multiple safety protections including over speed, over temperature, door cover self-locking, and three-level protective cover
Compatible with various capacity adapters (5ml to 50ml) for versatile applications
Widely used in radioimmunity, biochemistry, pharmaceutical, and related industries

Technical Specifications

Model	CFL535R	Timing Range	0-999min
Maximum Speed	5350r/min	Power Supply	AC 220V 50Hz 15A
Maximum RCF	5030×g	Machine Noise	≤55dB(A)
Maximum Capacity	3000ml	Dimensions	620×740×810mm
Speed Accuracy	±20r/min	Net Weight	150kg
Power	1700W	Chamber Diameter	Φ450
Temperature Range	-20℃~+40℃	Temperature Accuracy	±1℃

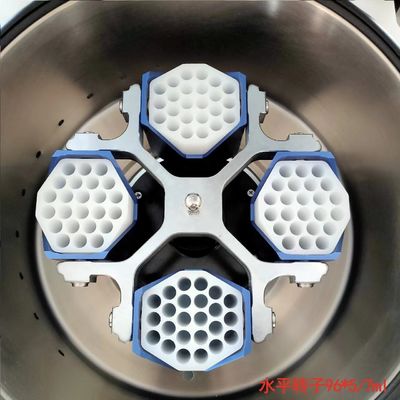

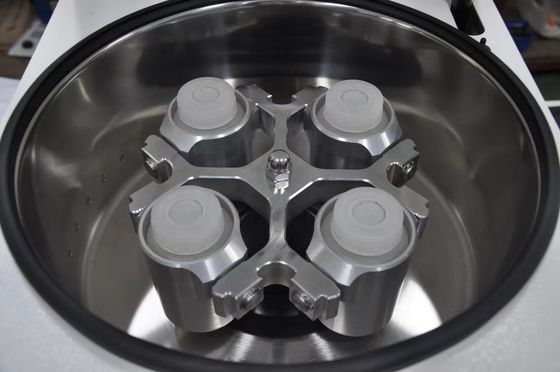

CFL535R Rotor Specifications

Rotor Type	No.	Capacity	Max Speed (r/min)	Max RCF (×g)
Main Machine	CFL535R		5350	5030
Angle Rotor	NO.1	12×15ml	5350	5030
Swing Rotor Body	NO.2	4×500ml	4000	3040
Enzyme Plate Rotor		4×2×96 well	4000	3040
Square Buckets		4xbuckets	4000	3040
Round Cup		4×500ml	4000	3040
Hanging Cup		4×24×5ml (Vacuum tube)	4000	3040
Hanging Cup		4×37×7ml (Test tubes)	4000	3040
Enzyme Plate Rotor Body	NO.3	2×2×96 well	4000	2200
Swing Out Rotor Body	NO.4	4×750ml	4000	3500
Swing Out Rotor Body	NO.5	6×250ml	4000	3580
Swing Out Rotor Body	NO.6	4×250ml	4200	3500
